  • Use: Vehicles & Remote Control Toys
  • Material: Metal
  • Model Number: PA01
  • Color: White
  • Color1: Black
Product Description

Introduction:

-Built-in high-speed transceiver automatic discriminated circuit switching.

-It can automatically switch to send and receive state which will not cause damage 2.4 G remote control.

-It can be applied to 2.4 G remote control model, such as 2.4 G wifi router spectrum launch receiving equipment.


Specification:

Receiver Gain:  10dB

Transmitter Gain:  11dB

Accept noise factor:  3.0dB

Input power range:  4dBm-20dBm

Max peak power:  33dBm; 2W

Input voltage:  3.7-5.5V

Dimension:  36mm* 26mm* 4.8mm

Standard antenna gain:  6DBI

A set of accessories:  AMP MB, 6DBI antenna, adapter

Color:  White / Black

Total:  39g


Package Include:

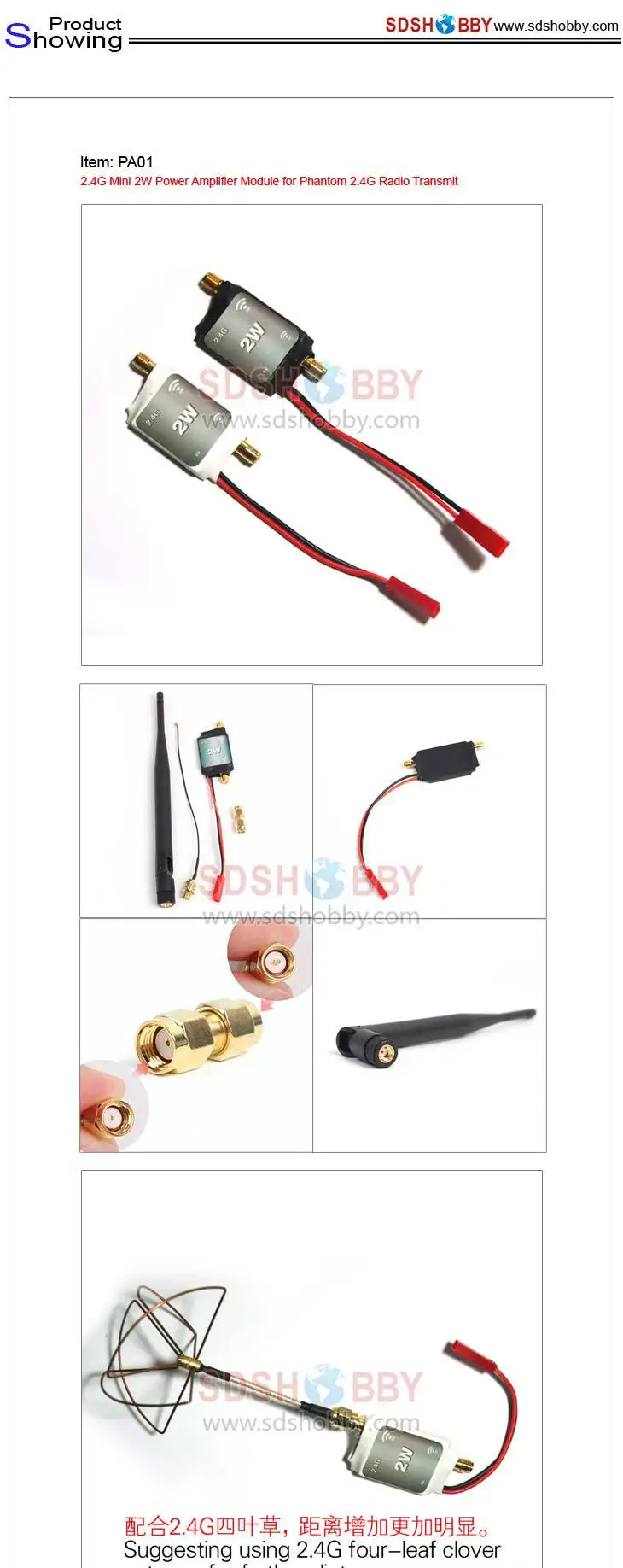

1* mini 2.4G 2W power amplifier module

1* antenna

1* connector
